Aluminum Casting Battery End Plate For New Energy Automobile Battery 587Ah

Price:	Negotiable
Payment Terms:	L/C T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Aluminum 6061.6063, Etc

Surface Treatment:

Anodizing, Electrophoresis, Spraying, Polishing, Grinding

Electrical Connection:

Copper-aluminum Composite Bar Design

Heat Dissipation:

Fins Or Channels Design

Molding Process:

Extrusion, Die Casting, Machining

Temper:

O,H12,H13,H14,H16,H18,H24,H32,H34,H19,H38,G36,F,H111,H112,H192,H392,H393,H321

Highlight:

Aluminum Casting Battery End Plate

Automobile Battery End Plate

587Ah Battery Pack End Plate

Product Description

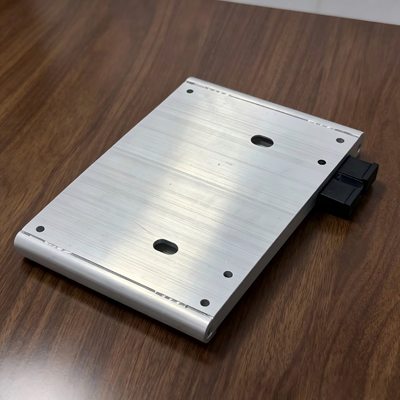

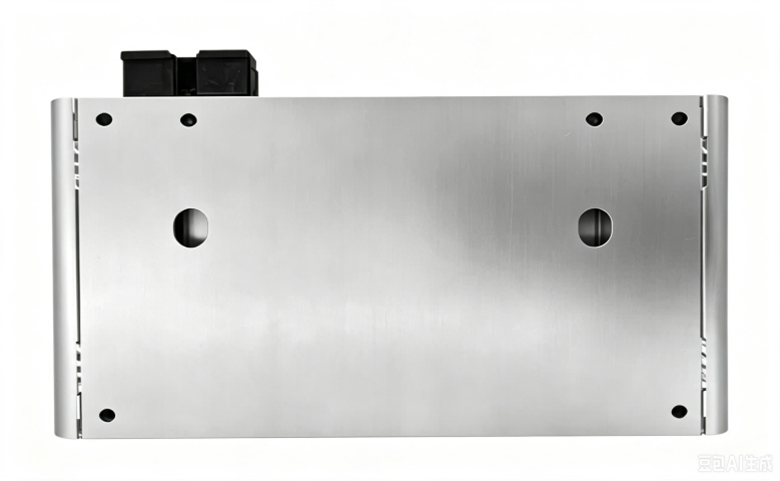

Aluminum End Plate for New Energy Vehicle Batteries is an important component specifically designed for new energy vehicle battery packs. Made from high-quality aluminum alloy and precisely processed, it features high strength, corrosion resistance, and light weight.

Product parameters

Products name	Aluminum End Plate for Battery Module
Material	Aluminum 6061.6063, etc
Size	OEM
Surface Treatment	Anodizing, electrophoresis, spraying, polishing, grinding
Electrical connection	Some end plates are integrated with copper-aluminum composite bar design to achieve low resistance conductivity, while taking advantage of the lightweight characteristics of aluminum to reduce the overall weight.
Heat dissipation structure	The surface of the end plate is designed with heat dissipation fins or channels, which are coordinated with heat dissipation fans, liquid cold plates and other components to form an efficient heat dissipation system, saving space and cost.
Molding Process	Supports various processes such as extrusion, die casting, and machining, which can make complex shapes to meet customized needs.
Installation method:	Bolt-on type: connected to the module frame by bolts, easy to disassemble and maintain. Snap type: Quick installation design, suitable for standardized modules, improve assembly efficiency.
Material cost	The cost of aluminum alloy is lower than that of composite materials such as carbon fiber, and the processing performance is excellent, reducing the cost of mold development and production.
Recyclability	Recycling rate of aluminum alloy exceeds 90%, meeting environmental requirements and helping enterprises achieve carbon neutrality goals.
Temper	O,H12,H13,H14,H16,H18,H24,H32,H34,H19,H38,G36,F,H111,H112,H192,H392,H393,H321 etc
Application	Heat exchange, Radiator, Condenser, Evaporator,Kitchenware, food and chemical products processing and storage devices Aircraft fuel tanks, oil pipe, rivets, wire; Cans cover, car body panels, steering plates, stiffeners, brackets and other components;
