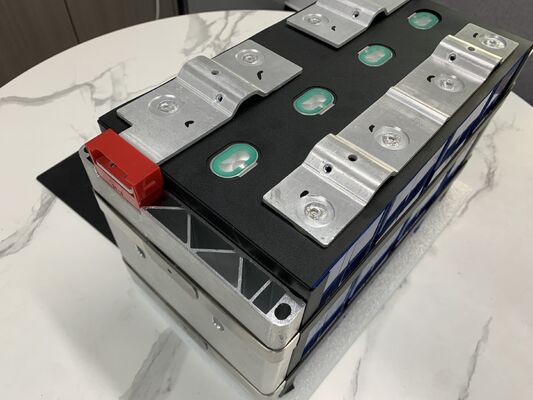

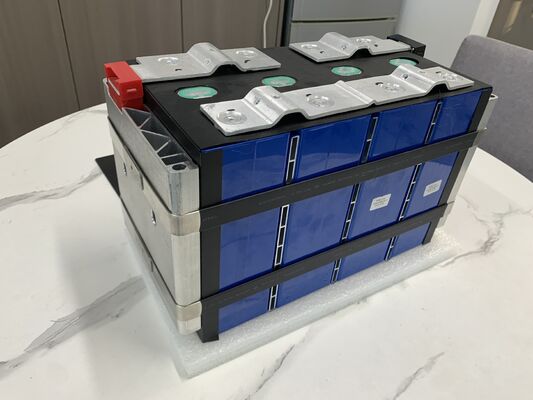

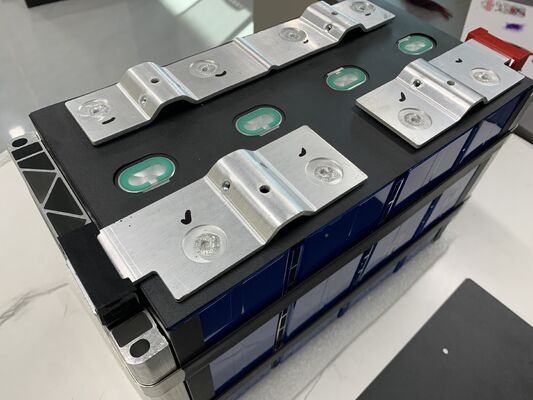

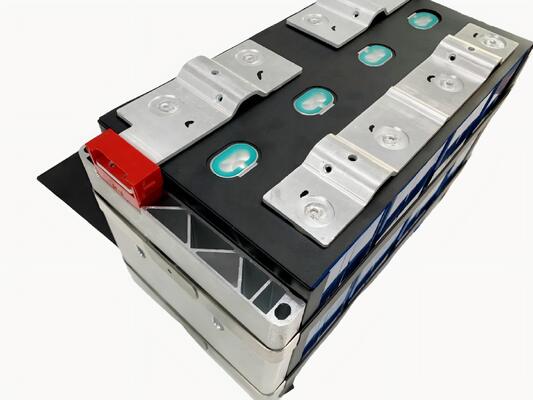

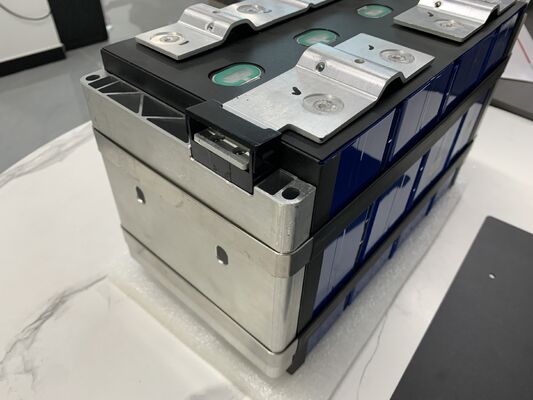

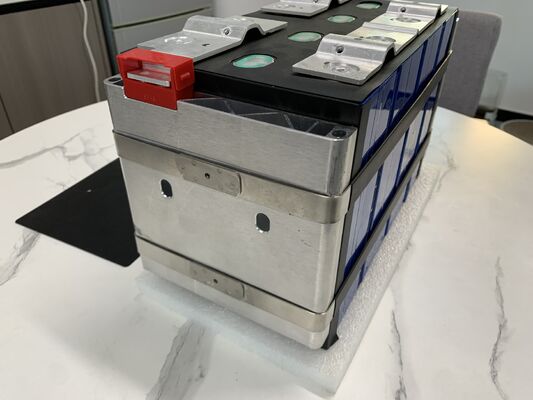

1P4S LFP Battery Module High Safety Long Cycle Battery Module For Energy Storage

Overview

The 1P4S LFP Battery Module is a standard, highly reliable battery pack designed for commercial energy storage systems, backup power units, microgrids, and customized battery energy storage equipment. Assembled with premium long-cycle lithium iron phosphate cells in 1 parallel and 4 series configuration, this module delivers stable voltage output, excellent thermal consistency and superior safety performance. As a core standardized component for small and medium-scale BESS, it supports flexible capacity matching, easy system integration and long-duration cyclic operation.

Factory assembled and strictly tested, the 1P4S battery module features compact structure, low self-discharge rate and strong environmental adaptability. It is widely adopted by energy storage system integrators, equipment manufacturers and solution providers worldwide for reliable and cost-effective battery stacking projects.

Core Specifications

• Configuration: 1P4S (1 Parallel, 4 Series)
• Battery Cell Type: Automotive-grade Lithium Iron Phosphate (LFP)
• Nominal Voltage: 12.8V
• Full Charge Voltage: 14.6V
• Cycle Life: ≥6000 cycles at 80% DOD
• Operating Temperature: -20℃ ~ +55℃
• Storage Temperature: -30℃ ~ +60℃
• Self-Discharge Rate: ≤3% per month
• Protection Functions: Overcharge, overdischarge, overcurrent, short circuit, over temperature protection
• Design Life: 10+ years
• Certification Standard: Compliant with mainstream energy storage industry safety standards

Key Product Advantages

1. Standard 1P4S Reliable Configuration

The 1P4S series connection structure provides a stable 12.8V nominal voltage, perfectly matching low-voltage energy storage equipment, backup power supplies and small industrial battery systems. The single-parallel and four-series layout ensures balanced current distribution and uniform cell operation, avoiding inconsistent attenuation caused by unreasonable structural design. It serves as a universal and interchangeable core module for modular energy storage solutions.

2. Ultra-Long Cycle & Low Attenuation LFP Cells

Adopting high-quality long-cycle LFP cells, the module supports more than 6000 deep cycles with extremely low capacity attenuation. Compared with ternary lithium batteries, LFP technology features better thermal stability, stronger overcharge resistance and longer service life. It maintains stable capacity output during long-term frequent charge-discharge cycles, greatly reducing battery replacement frequency and overall project operating costs.

3. Comprehensive Multi-Dimensional Safety Protection

Built with an integrated protection circuit and structural safety design, each 1P4S battery module realizes full-range safety monitoring and protection. It effectively prevents abnormal conditions such as overcharging, overdischarging, overcurrent, short circuit and overheating. The flame-retardant shell and insulated structural design enhance mechanical stability and fire resistance, ensuring safe operation in commercial, industrial and outdoor environments.

4. Easy Integration & Flexible Expansion

With standardized size and consistent electrical parameters, the 1P4S battery module supports series and parallel combination for capacity and voltage expansion. It can be freely stacked and matched to meet different voltage and capacity requirements of customized energy storage systems. The pluggable and modular design simplifies system assembly, shortens project integration cycles and reduces manual installation errors.

5. Wide Temperature Adaptability & Low Maintenance

The module maintains stable charging and discharging performance in a wide temperature range from -20℃ to +55℃, adapting to high-temperature workshops, low-temperature outdoor areas and harsh industrial working conditions. Featuring low self-discharge rate and excellent stability, it requires almost no daily maintenance, realizing unattended long-term operation for energy storage equipment.

Application Scenarios

• Small & Medium-Sized BESS: Core battery module for commercial and industrial energy storage cabinets and distributed energy storage systems.
• Backup Power Supply: Uninterrupted power support for communication equipment, industrial controllers and office emergency power systems.
• Microgrid Energy Storage: Stable power storage and output for household and industrial microgrid systems.
• Custom Energy Storage Projects: Flexible voltage and capacity combination for customized off-grid energy storage devices.
• Smart Infrastructure: Power supply for smart street lights, monitoring equipment and remote IoT devices.
