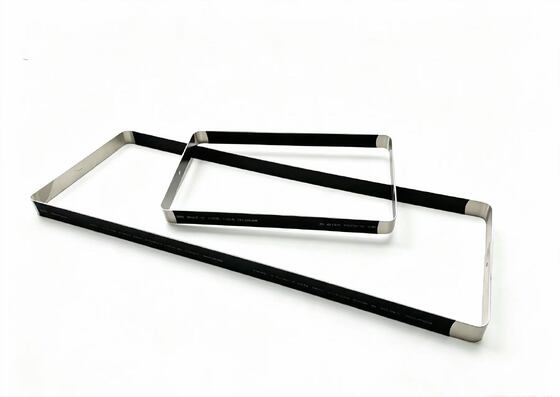

R3-R15 Radius Bending Battery Module Steel Strap Custom Shapes One Step Forming And Cell-Fit Design

R3-R15 Radius Bending Battery Module Steel Strap Custom Shapes One Step Forming And Cell-Fit Design

Price: Negotiable
Payment Terms: L/C T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Material:
Steel SUS301
Thickness:
1mm
Tensile Strength:
≥1300Mpa
Yield Strength:
≥1000Mpa
Insulation Voltage:
1000V DC
Leakage Current:
<0.1mA
Highlight:

Battery Module Steel Strap Custom

,

Cell Fit Battery Module Steel Strap

,

Cell Fit battery module strapping

Product Description

Technical Requirements:

  • The material is stainless steel 201 LH with a thickness of 1mm, the material yield strength exceeds 1050MPa, the tensile strength exceeds 1350MPa, and the solder joint tensile force is greater than 21KN.
  • The insulation flame retardancy meets UL94-V0
  • The parts are free of cracks, dirt and other defects
  • The insulation layer withstands 3500VDC 60S leakage current 1mA, 1000VDC insulation resistance is greater than or equal to 500MQ
  • The unmarked tolerance dimensions refer to GB/T1804-m, and the uninjected position tolerance is in accordance with GB/T1184-K
  • The parts meet the marked dimensions
Product name Steel Belt
Material Steel SUS301
Tensile Strength ≥1300Mpa
Yield Strength ≥1000Mpa
Insulation Reguirements 1000V DC
Voltage requirements 2700V DC
Leakage Current <0.1mA
Degree Of Protection UL94Vo level
Application Lithium battery module bundling
