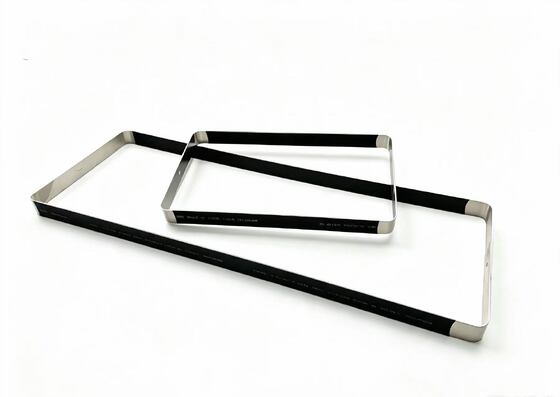

EV Battery Pack Steel Strap With Dimensional Inspection And Insulation Withstand Voltage Testing

EV Battery Pack Steel Strap With Dimensional Inspection And Insulation Withstand Voltage Testing

Price:	Negotiable
Payment Terms:	L/C T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Steel SUS301

Thickness:

1mm

Tensile Strength:

≥1300Mpa

Yield Strength:

≥1000Mpa

Insulation Resistance:

≥500MQ

Leakage Current:

<0.1mA

Highlight:

EV Battery Pack Steel Strap

,

EV Battery Pack Steel Band

,

EV Battery Pack Metal Strap

Product Description

Technical Requirements:

The material is stainless steel 201 LH with a thickness of 1mm, the material yield strength exceeds 1050MPa, the tensile strength exceeds 1350MPa, and the solder joint tensile force is greater than 21KN.
The insulation flame retardancy meets UL94-V0
The parts are free of cracks, dirt and other defects
The insulation layer withstands 3500VDC 60S leakage current 1mA, 1000VDC insulation resistance is greater than or equal to 500MQ
The unmarked tolerance dimensions refer to GB/T1804-m, and the uninjected position tolerance is in accordance with GB/T1184-K
The parts meet the marked dimensions

Product name	Steel Belt
Material	Steel SUS301
Tensile Strength	≥1300Mpa
Yield Strength	≥1000Mpa
Insulation Reguirements	1000V DC
Voltage requirements	2700V DC
Leakage Current	<0.1mA
Degree Of Protection	UL94Vo level
Application	Lithium battery module bundling
