| Price: | Negotiable |
| Payment Terms: | L/C T/T |

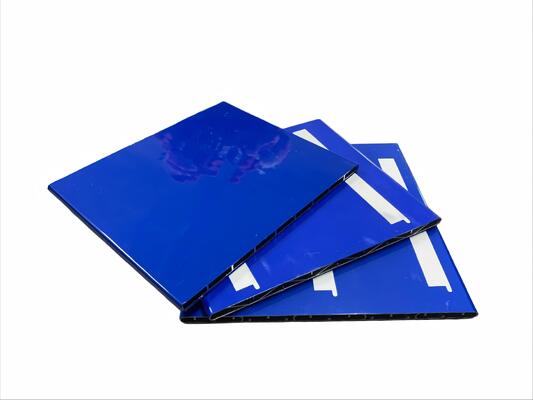

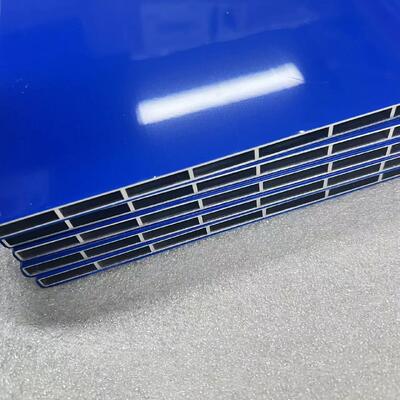

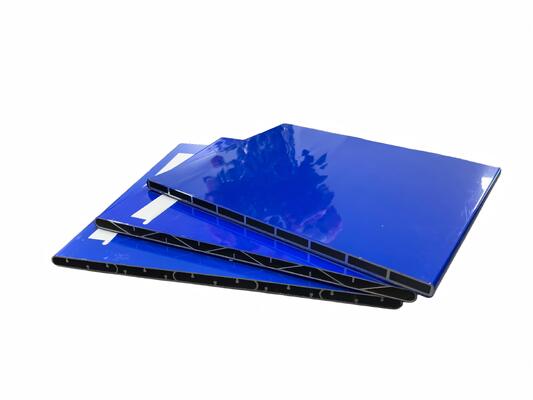

This stamped aluminum liquid cooling plate is made of aluminum alloy and achieves excellent heat dissipation performance through precision stamping process and vacuum brazing technology. The unique runner design can keep the battery pack stably in the 20-35℃ efficient working range, and with the IP67 waterproof rating, it effectively extends the battery cycle life by up to 25%. The weight is reduced by 30% compared to traditional steel solutions, helping to increase the vehicle's range.
EV battery liquid cooling plate supports customized runner layout and interface specifications, which is suitable for all kinds of passenger car/commercial vehicle battery packs. The product has been tested to 3MPa burst pressure and meets IATF16949 automotive quality standards. The anodized surface treatment ensures corrosion resistance for more than 10 years. Lori's rich experience in the industry has provided professional thermal management solutions for new energy vehicles around the world.
Specification
| Item Name | Power battery pack aluminum water cooling plate |
| Base Material | 3003, 3003MOD or customized aluminum plate |
| Product Size | Customized size, Lmax 2,000MM, Wmax 1,100MM |
| Product Thickness | 0.8~3.0MM orcustomized |
| Deformation Pressure | ≥0.2 Mpa |
| Burst Pressure | ≥1.0 Mpa |
| Residual Impurity | ≤15 Mg/L |
| Product Composition | Cover plate, print plate, water connectors |
| Main Process | Hot rolling, helium leak detection, flatness check, insulation coating |
| Annual Capacity | 1.5Million PCS based on product width 1,100MM |
| Quality Certificate | IATF16949, ISO9001, ISO14001, ISO45001 |
| Main Application | Energy Storage System (ESS), Electric Vehicle (EV), New Energy Vehicle |
