Battery Module Steel Strap

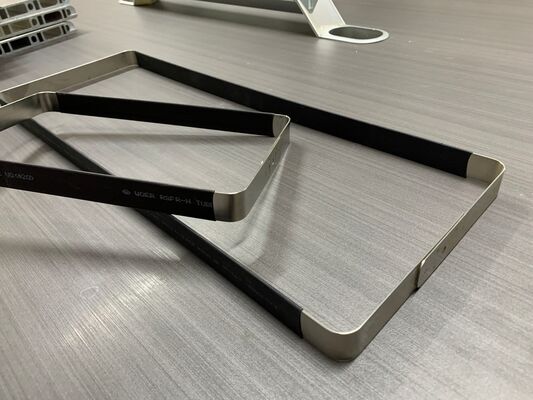

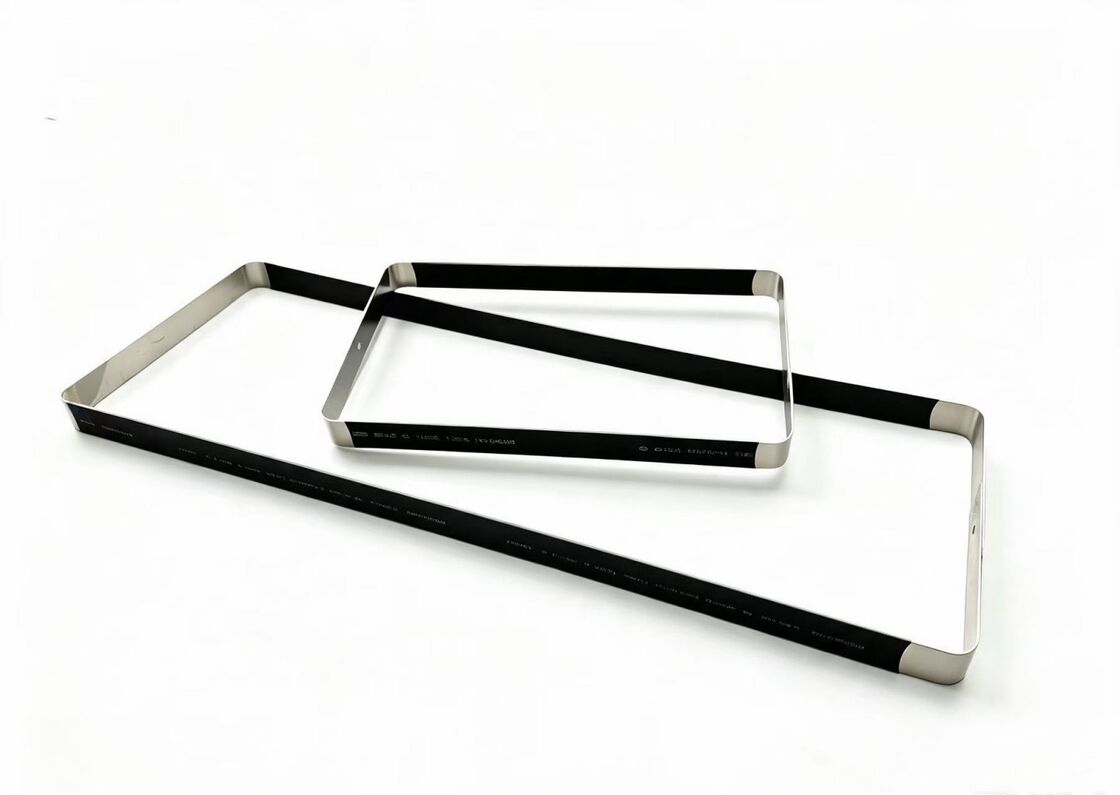

Customized EV Battery Module Metal Strap Prismatic Battery Cell Steel Strap

All Category

Battery Module Steel Strap

Battery End Plate

Air-cooled Heat Sink Aluminum Plate Link Categories

Bearing Support

Lithium Battery Energy Storage System

Lithium Battery Module

Supporting Products

Mr. WangDong

cs@bessgs.com

+8613312077778

Chat Now

Customized EV Battery Module Metal Strap Prismatic Battery Cell Steel Strap

Price:	Negotiable
Payment Terms:	L/C T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material Thickness:

Material Type:

201 LH Stainless Steel

Yield Strength:

≥1050 MPa

Tensile Strength:

≥1350 MPa

Welding Joint Load:

≥21 KN

Insulation Voltage:

3500 V DC

Highlight:

EV Battery Module Metal Strap

Prismatic Battery Cell Steel Strap

Customized Battery Cell Steel Strap

Product Description

Base material shall be 1‑mm‑thick 201 LH stainless steel. Its yield strength shall surpass 1050 MPa, tensile strength shall be above 1350 MPa, and the tensile load capacity of welding joints shall be no less than 21 kN.
Insulation coating shall satisfy UL94‑V0 flame‑retardant classification requirement.
Finished components shall be free from surface cracks, stains and other visual or structural imperfections.
Insulation layer shall withstand 3500 V DC for 60 seconds with leakage current kept within 1 mA; under 1000 V DC condition, insulation resistance shall reach minimum 500 MΩ.
For dimensions without specified tolerance values, comply with GB/T 1804‑m; unmarked geometric positional tolerances shall follow GB/T 1184‑K provisions.
All manufactured parts shall conform fully to dimension values shown on drawing marks.

Product name	Steel Belt
Material	Steel SUS301
Tensile Strength	≥1300Mpa
Yield Strength	≥1000Mpa
Insulation Reguirements	1000V DC
Voltage requirements	2700V DC
Leakage Current	<0.1mA
Degree Of Protection	UL94Vo level
Application	Lithium battery module bundling
